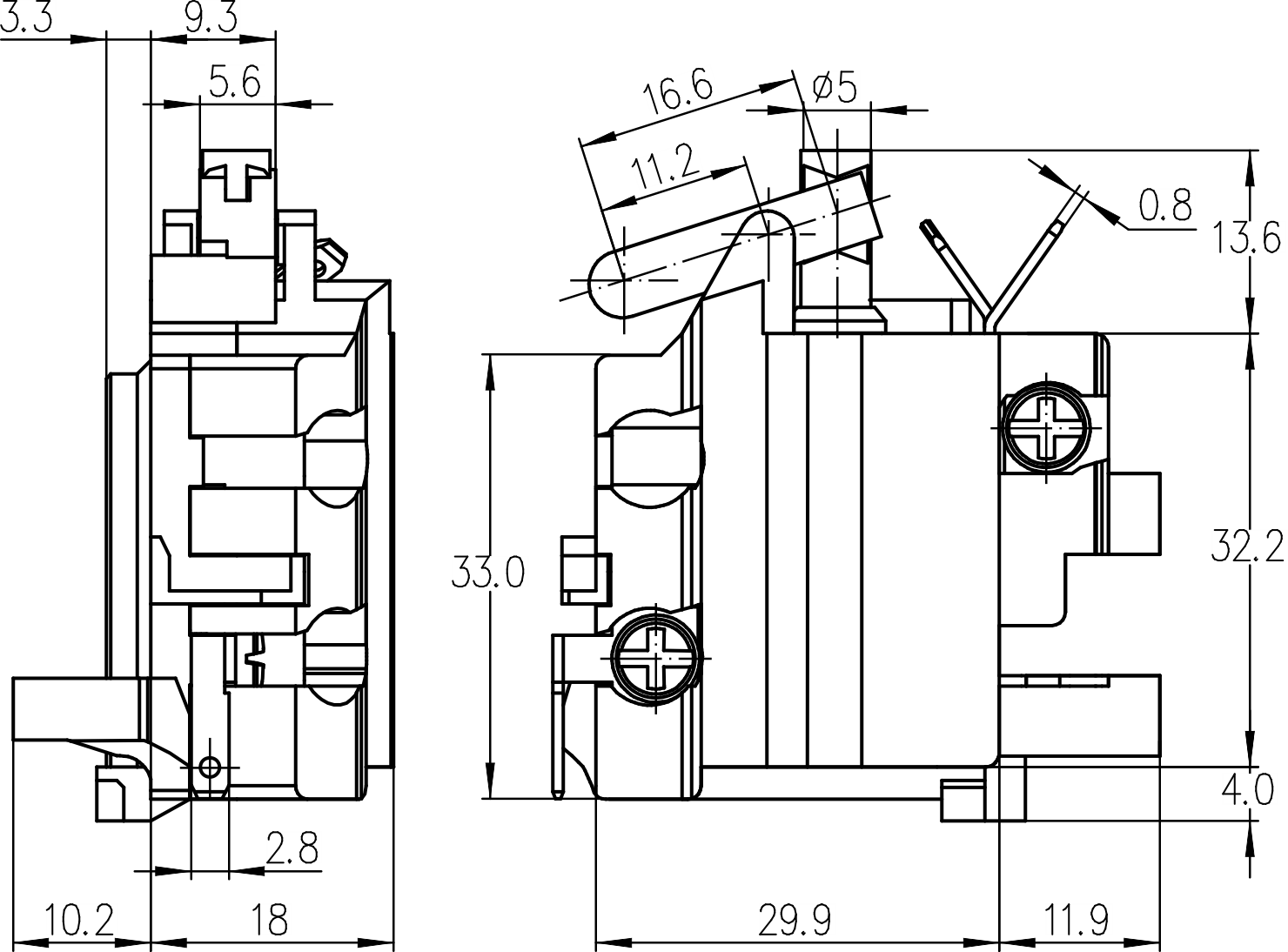

JB08-8/1-2

JB06/JB08舊款電動工具專用開關

JB06/JB08 series Switches Special for Previous Type Power-tools

產品描述Product description

◆JB08系列是一專用的舊款機型開關，集成防塵功能，適用于一般手持式電動工具，如：125和150角向磨光機、拋光機、模具電磨等。
◆JB08 series are one special type switch for previous type power-tools, integrated dustproof, commonly for used in portable power-tools such as: 125mm and 150mm Angle Grinders, Polishers, Die Grinders, etc.

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V48A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

◆輸入端 Input side:
→螺釘端子 Screw terminals M4
◆輸出端 Output side:
→插片端子 Plug-in terminals 2.8×0.8mm

電氣參數和認證 Electric Rating and Certification
