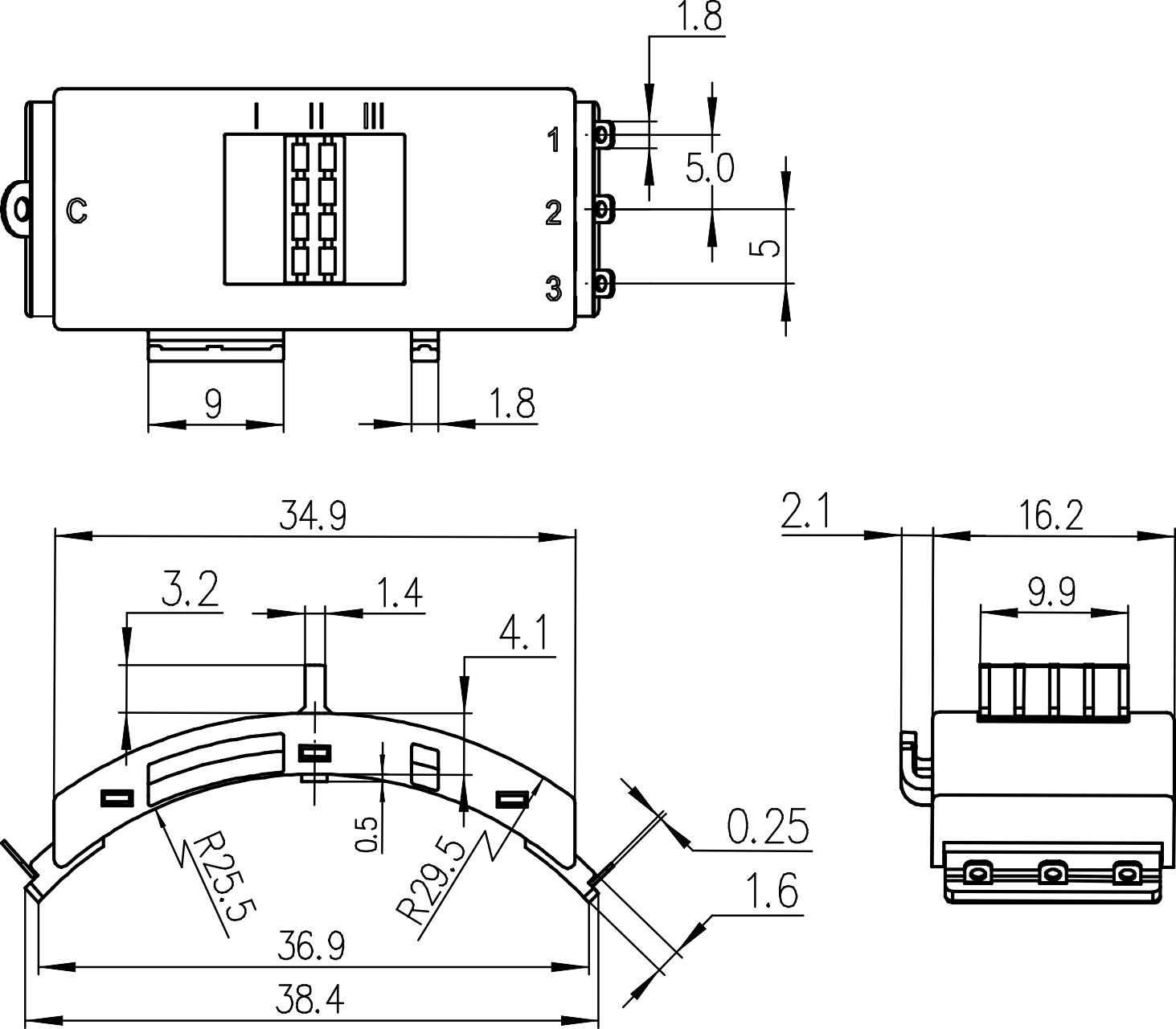

FDR-1300

FDR滑動(推拉)開關

FDR series Slide (Push-pull) Switches

產品描述Product description

◆FDR系列是一款專用型的弧型滑動開關，也叫推拉開關或推撥開關，應用于各類需要微電流檔位控制的電器，如：直流充電電鉆、直流充電螺絲起子、直流充電燈等。
◆FDR series are special arc type slide switches, commonly for used in micro current appliances such as DC Cordless Drills, DC Cordless Screwdrivers, DC Cordless Lights, etc.

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大電流 Max. current at 24Vd.c0.5A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function500V
→加強介電強度 Dielectric strength of reinforced500V
→環境溫度 Ambient temperature0°C~85°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

◆輸入端/輸出端 Input side/Output side:
→焊接端子 Soldering terminals 4-φ=0.8mm
★本產品榮獲實用新型專利，專利號：ZL201821372793.X
★Utility Model patented with the no. is ZL201821372793.X

電氣參數和認證 Electric Rating and Certification

訂貨信息Ordering Information
